4 (JB04), 6 (JB06) or 8(JB08), 10 (JB10), 12 (JB12)
Corner adjustment
Through multi turn potentiometers for individual load cells
Section load trimming
Through multi turn potentiometers (one foreach section)
Electrical protection
Special lightening protection components forprotection againsttransients induced by lightning
Environmental protection
Rubber Seal Gasket on top cover and air tight cableglands for entry of loadcell cables and indicator
Dimensions(mm)
JB04:- 230 X 190 X 5, JB06:- 250 X 190 X 55, JB08:- 280 x 190 X 55, JB10:- 315 X 190 X 55, JB12:- 35
Preferred Buyer From
Location
Worldwide

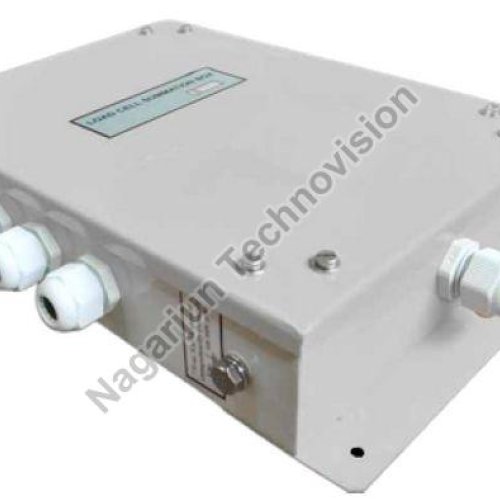

Load Cell Junction box is designed for the use of summing the signal outputs from multiple load cells. The junction box is constructed using thick MS sheet and is powder coated to withstand harsh environmental conditions. Protective rubber seal for the lid, airtight cable glands for routing cables ensure prevention of moisture & dust ingress, thus preventing signal distortion. A high quality signal thus obtained, offers higher resolution in the constructed weighing scale.
Features
Makes weigh scale installation fast and easy Powder coated MS sheet enclosure sealed against moisture and dust Air _ght cable glands for load cell cables and output cable to indicator Signal trimming by trim pots for every load cell (corner error correc_on) Sec_on trimming by trim pots for every sec_on Protec_on against high voltage induced by lightning
SWB Weight Indicator is a microprocessor basedstate-of-art indicator with sigma delta type 24 bit analog to digital conversion. Standard RS232 communication for continuous weight transmission make it suitable for interfacing with PC software. 'D300' is robust in nature to withstand harsh environmental condition. It can operate reliably over a wide temperature range and also in humid weather.
Front mount 1” (25mm) LED display toshow weight
Attractive looks
Rigid performance.
Standard 9pin D type RS232 (Com)port, for continuous transmission ofweight at 2400 baud rate
Easy & secured installation with frontfour keys
Improved SMPS power supply
EMI-RFI filter & spike suppressor forinput power
Table top port
Table top port for connecting externalwired display
Multi step calibration procedure toachieve perfect and error freecalibration, to get accurate weightpowered by Sigma Delta type 24 bitADC
Dual range system for achievingbetter accuracy at lower weight range
Facility to change calibration passwordin field
Smart calibration to correct minorweight deviation without using actualtest weights
Auto zero tracking to track zeroposition
Selectable display of zero/actualweight on power ‘ON’
Customization for RS232communication string baud rate,parity & format to match with preinstalled indicators (optional)
