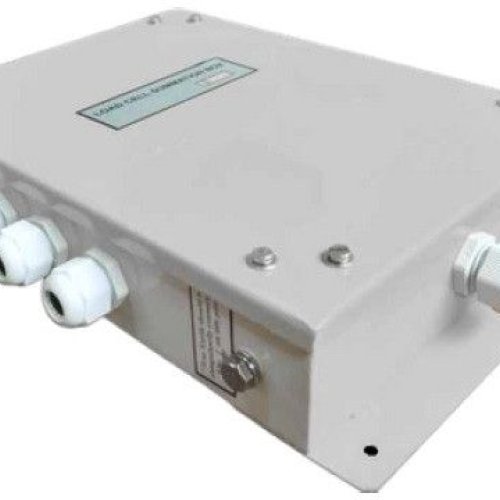

Weighbridge Junction Box | Nagarjun Technovision
The Weighbridge Junction Box is a crucial part of any Electronic Weighbridge, Slow Speed Weigh-In-Motion (SSWIM), or Medium Speed Weigh-In-Motion (MSWIM) system. It connects multiple load cells used in the weighing platform, balances their signals, and ensures accurate and stable weight readings for every vehicle passing over the weighbridge.
At Nagarjun Technovision, we manufacture and supply premium-quality Junction Boxes designed for high precision, reliability, and long-term outdoor performance. Our junction boxes are compatible with all types of weighbridges, including Pit Type, Pitless Type, Mobile, and Modular Weighbridges, as well as Axle Weighing Systems and WIM Systems.
Product Overview
The Nagarjun Technovision Junction Box acts as the central hub between multiple load cells and the weighbridge indicator. It collects individual signals from each load cell, performs signal trimming and corner balancing through precision potentiometers, and sends a combined, stable signal to the weight indicator or weighing controller. This ensures consistent readings for axle weight, gross vehicle weight, and tandem axle measurement in SSWIM and MSWIM applications.
Key Features
- Rugged Construction: Made from high-grade stainless steel or industrial ABS plastic for superior durability and corrosion resistance.
- Weatherproof & Dustproof: IP65/IP67-rated enclosure suitable for harsh field and highway environments.
- Multiple Load Cell Inputs: Supports 4, 6, or 8 load cells — ideal for standard weighbridges and WIM systems.
- Accurate Signal Trimming: Built-in multi-turn potentiometers for section-wise and corner-wise adjustment.
- Surge & Lightning Protection: Integrated protection circuitry safeguards against voltage spikes and transients.
- Shielded Signal Transmission: Maintains signal integrity and minimizes electrical noise for stable readings.
- Easy Service & Maintenance: Clear terminal markings, cable glands, and removable cover for quick access.
- Long Life Performance: Designed for continuous 24×7 operation under heavy vehicle load conditions.
Technical Specifications
|
Parameter |
Specification |
|
Material |
Stainless Steel / ABS Plastic |
|
Ingress Protection |
IP65 / IP67 |
|
Load Cell Inputs |
4 / 6 / 8 |
|
Output Signal |
Summed Load Cell Signal to Indicator |
|
Connection Type |
Screw Terminal Blocks with Cable Glands |
|
Operating Voltage |
5V to 12V DC (Typical) |
|
Operating Temperature |
-10°C to +60°C |
|
Mounting Type |
Wall or Base Mount |
|
Protection |
Surge & Lightning Protection |
Applications
- Pit Type & Pitless Weighbridges
- Slow Speed Weigh-In-Motion (SSWIM) Systems
- Medium Speed Weigh-In-Motion (MSWIM) Systems
- Axle Weighing Platforms
- Truck & Trailer Weighing Systems
- Industrial Platform Scales & Hopper Weighing
Why Choose Nagarjun Technovision Junction Boxes
- Designed and manufactured in India with strict quality control.
- Compatible with OIML R134 and Indian metrology standards.
- Tested for precision, stability, and environmental endurance.
- Fully integrated with Nagarjun Technovision SSWIM, MSWIM, and Electronic Weighbridge systems.
- Reliable customer support and service across India.
Our Weighbridge Junction Boxes are trusted in highway weigh stations, industrial plants, mining zones, logistics yards, and government weigh-in-motion projects. Whether you are installing a new system or upgrading your existing weighbridge, Nagarjun Technovision provides reliable, field-proven junction boxes that enhance accuracy, reduce downtime, and improve weighing efficiency.
